Two types of output are generated in power calculation process: association group statistics as well as summary site specific attributes.
Output are written to two separate
.csv files and to a SQLite database. The
.csv output will be overwritten each time the program is executed, yet the results in database will be updated with the latest calculation while keeping all existing information it has. The
.csv can be considered as an intermediate output to readily view current calculation results. The database contains all calculations ever performed, which serves as useful resource for future references.
spower show command provides features to extract information from output text or database files.
spower show test.csv
shows all column names in the output file
test.csv. To view values of particular columns, for example “method” and “power”:
spower show test.csv method power
Wildcard character “*” is supported, for example:
spower show test.csv *deleterious*
spower show test.SEQPower.DB
shows all table names in the database, e.g.,
To show column names in a particular table:
spower show test.SEQPowerDB LOGIT
To show values for a particular column for a table:
spower show test.SEQPowerDB LOGIT power
Note that wildcard character is not supported for database output. However an additional
--condition command is supported for database. For example to select only the tests having power greater than 0.8:
spower show test.SEQPowerDB LOGIT title method power --condition "where power > 0.8"
We recommend the use of an SQLite GUI software such as SQLite Studio to browse the result SQLite database. These programs display the data as spreadsheets, and provides simple “click & run” features to filter or query the current database.

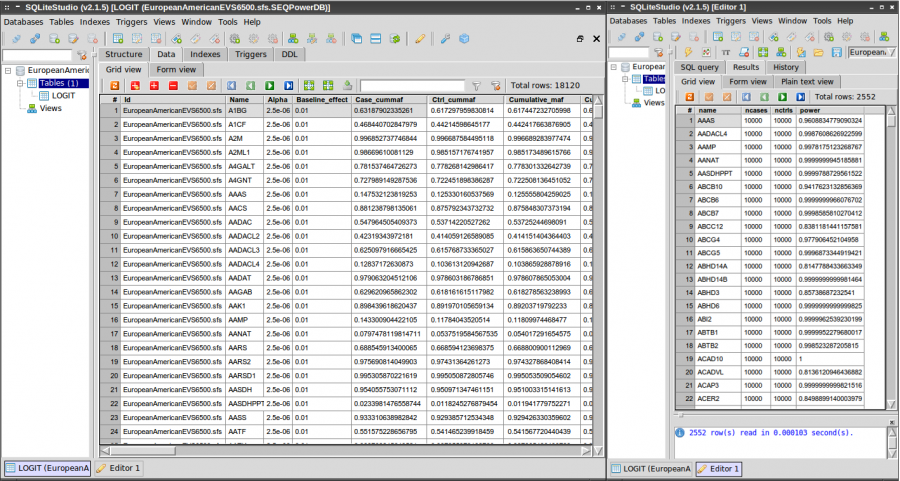

Below is a screen shot of SQLite Studio displaying the power analysis result of a whole exome scan (left) and the tests with power greater than 80% (right), extracted via running SQLite query from the GUI.
